Print this page Hurricane Resistant - HIGT6700 Series Fixed
Fixed Window
Frame Depth (inches) 3.0
Description New and improved highly energy efficient window, for hurricane-impact resistance, with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
- Applications
- Hurricane Resistant
Test Size (inches)
54 x 96
Air Infiltration (cfm/ft2)
<0.10
Water Resistance (psf)
12
Design Pressure Positive (psf)
100
Uniform Load Structural (psf)
150
U-Value
0.31 - 0.39
CRF
66
STC
39
Test Method
AAMA 506-16, ASTM E 1886-12, ASTM E 1996-17
Large Missle
Meets
Notes
The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.
Standard Features
- Fixed windows for hurricane-impact resistance
- Provides large missile impact protection
- 3” Frame Depth
- 1” or 1-1/4” overall glazing infills
- 1-5/8” slim sightline historic profiles
- Reduced number of parts for better product performance and integrity
- Special euro-grooves to accommodate multiple hardware options and accessory applications
- Superior joinery allows for larger units and more configurations
- Deep sloped exterior glazing leg
- Fixed/Operable intermediate design offers minimal sightlines
- Design allows multiple units into one opening simplifying installation
- larger thermal strut technology for excellent thermal performance
- Concealed hinges
- 4-inch limited opening device
Optional Features
- True and exterior applied muntin grids
- Concave frame and muntins
- Equal sightline frame
- Dual finish (two-tone color) option
Related Products
Hurricane Resistant - HIGT6700 Series Projected
Projected WindowFrame Depth (inches) 3.0
Description New and improved highly energy efficient window, for hurricane impact resistance, with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.39 - 0.46
Test Size (inches)40 x 84
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Uniform Load Structural (psf)150
Hurricane Resistant - HIGT6700 Series Casement
Casement WindowFrame Depth (inches) 3.0
Description New and improved highly energy efficient window, for hurricane-impact resistance, with a historic window profile. The newly designed GT6700 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.38 - 0.43
Test Size (inches)42 x 78
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)+70
Design Pressure Negative (psf)-90
Technical Data
Product Literature
Additional Resources
Specifications
HIGT6700B/C Fixed DP +70 ; -90 CSI Spec
Thermal Summary
GT6700 Fixed Thermal Simulation Summary
FL Approval Submittal
Accessory Installation Guides
View Graham's Technical Resources Page
Resources
Installation Accessories
3" Unitized Frame Accessories
View Accessories >CAD Files
Description
AutoCAD

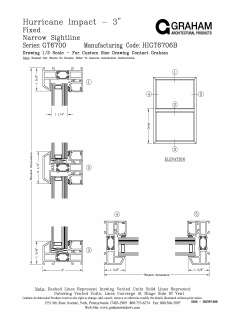

Hurricane-Impact Fixed (Beveled; Narrow Siteline)
