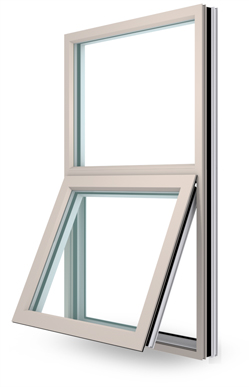

Projected Window
Frame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
- Applications
- Commercial
- Education
AAMA Rating
AW-PG100
Test Size (inches)
60 X 36
Air Infiltration (cfm/ft2)
<0.10
Water Resistance (psf)
12
Design Pressure Positive (psf)
100
Uniform Load Structural (psf)
150
U-Value
0.25-0.43
CRF
66-72
Notes
Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size
Standard Features
- 3-3/8” Frame Depth
- Special euro-grooves to accommodate multiple hardware options and accessory applications
- Superior joinery allows for larger units and more configurations
- Deep sloped exterior glazing leg
- Multiple glazing depths available
- Fixed/operable intermediate design offers minimal sightlines
- Design allows multiple units into one opening simplifying installation
- Larger thermal strut technology for excellent thermal performance
- Dual finish (two-tone color) option
- Concealed hinges
- 4-inch limited opening device
Optional Features
- True and exterior applied muntin grids
- Concave frame and muntins
- Flush-face vent/frame
- Equal sightline frame
- Roto operators
- Single lever operator
- Eliminates need for wicket screens
- Can assist with meeting ADA operational forces - Multi-point locking system
Related Products
GT6800 Series Dual Action
Dual Action WindowFrame Depth (inches) 3.375
Description Highly energy efficient commercial window with a historic window profile. The GT6800 incorporates thermal strut technology for optimal thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.20-0.37
AAMA RatingCW-PG70
Test Size (inches)48 x 72
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)70
GT6800 Series Fixed
Fixed WindowFrame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic
window profile. The newly designed GT6800 incorporates European thermal
strut technology for optimum thermal efficiency and low U-values. Achieving
AAMA AW rated in all configurations with minimum air infiltration, high water
resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
GT6800 Series Casement
Casement WindowFrame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)36 x 60
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Technical Data
Product Literature
Additional Resources
Specifications
GT6800B/C Projected Awning AW-PG100 AAMA-08 Spec
GT6800F Projected Awning AW-PG100 AAMA-08 Spec
GT6800B/C Projected Hopper AW-PG100 AAMA-08 Spec
GT6800F Projected Hopper AW-PG100 AAMA-08 Spec
CAD Drawings
Thermal Summary
GT6800 Awning Thermal Simulation Summary
Product Performance Guide
Installation Guide
Projected/Casement Installation Instructions
Accessory Installation Guides
Installation Accessories

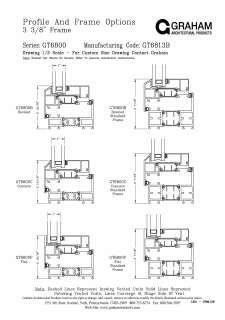

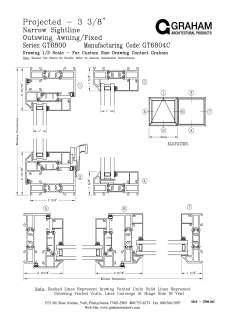

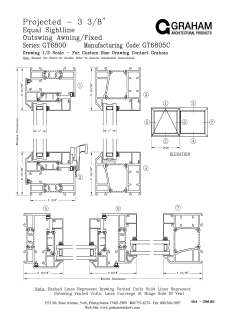

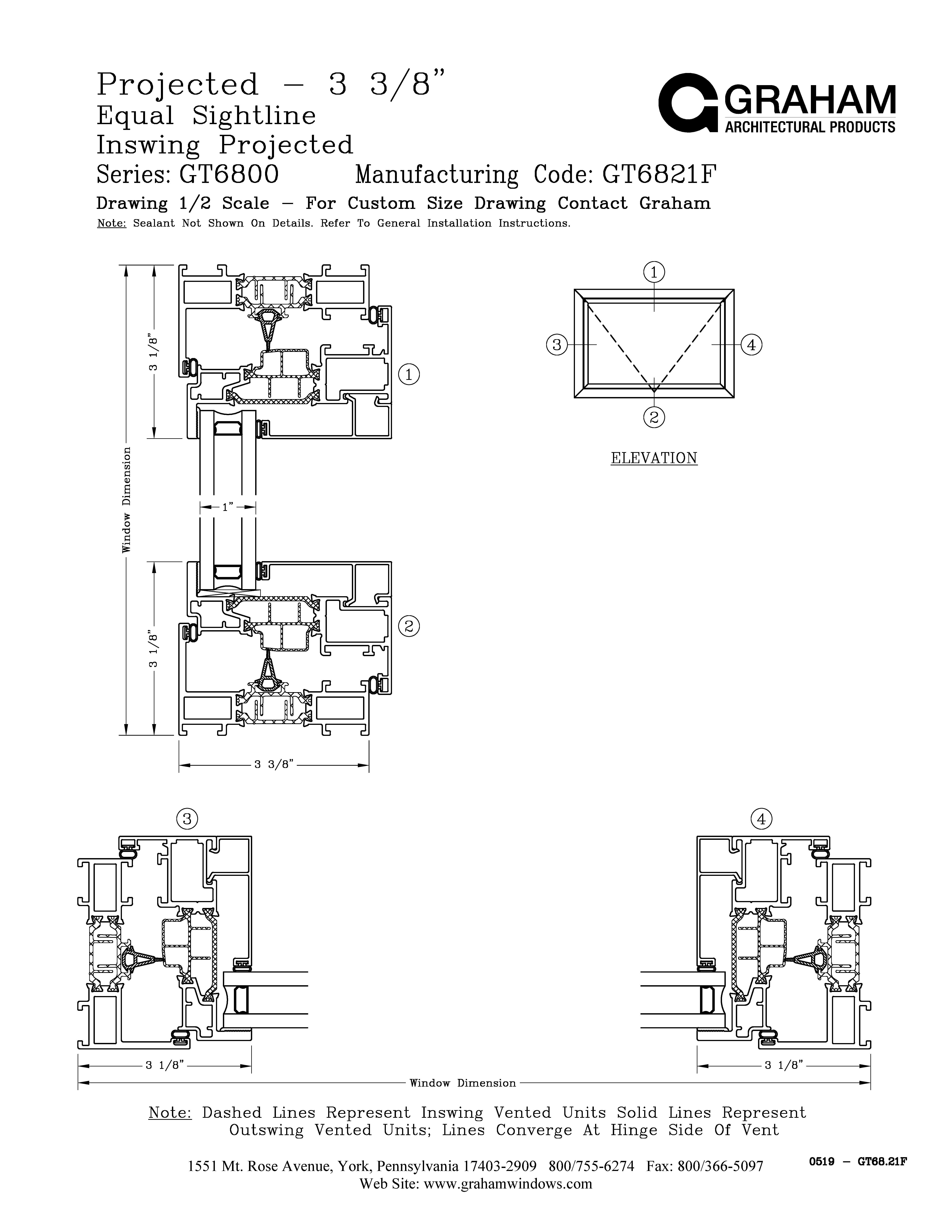

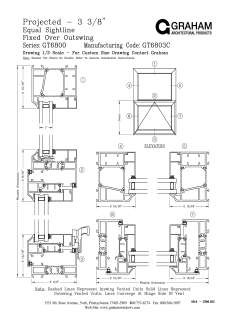

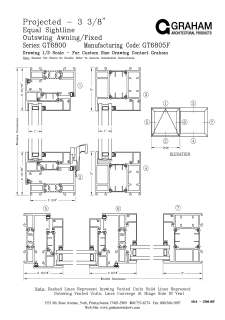

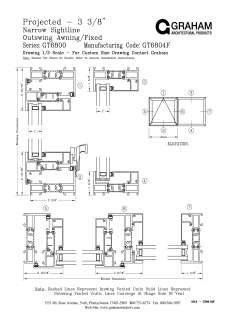

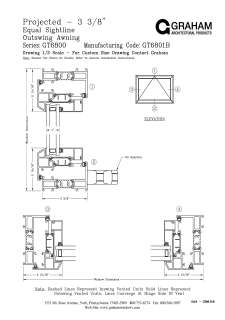

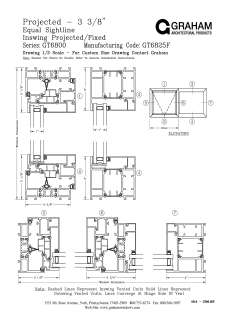

CAD Files
Description
AutoCAD

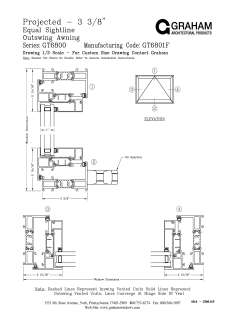

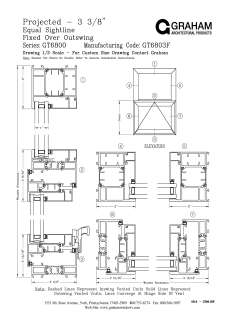

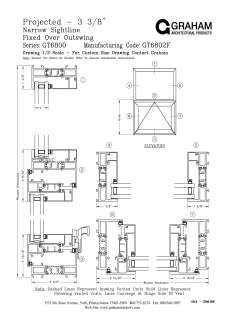

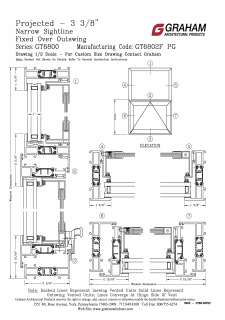

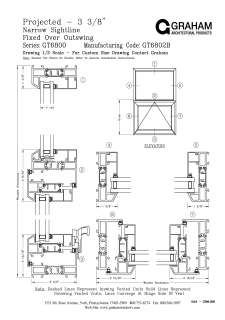

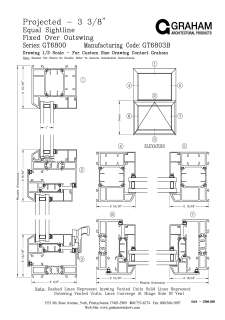

Fixed Over Outswing; Narrow Sightline w/Guardian Panel (Flat)
- GT68_02F GP_0623.pdf
Drawing Preview

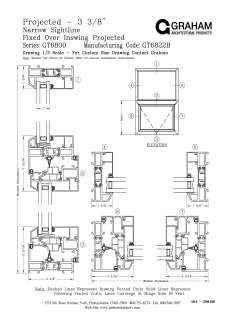

Fixed Over Inswing Projected; Narrow Sightline (Beveled)
- GT68_22B_0623.pdf
Drawing Preview

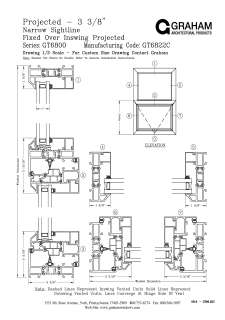

Fixed Over Inswing Projected; Narrow Sightline (Concave)
- GT68_22C_0623.pdf
Drawing Preview

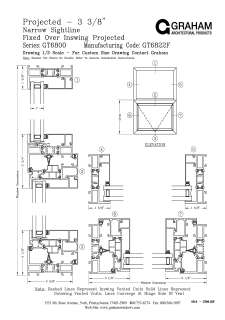

Fixed Over Inswing Projected; Narrow Sightline (Flat)
- GT68_22F_0623.pdf
Drawing Preview

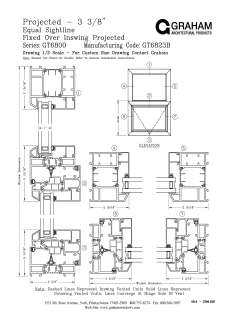

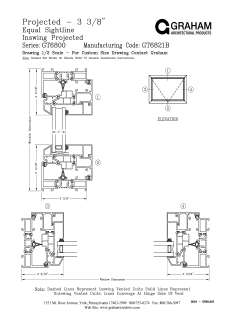

Fixed Over Inswing Projected; Equal Sightline (Beveled)
- GT68_23B_0623.pdf
Drawing Preview

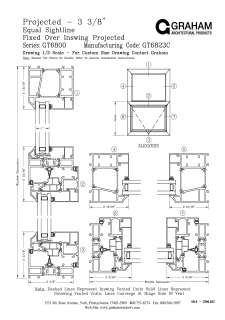

Fixed Over Inswing Projected; Equal Sightline (Concave)
- GT68_23C_0623.pdf
Drawing Preview

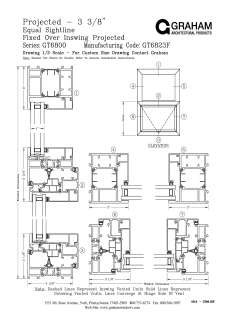

Fixed Over Inswing Projected; Equal Sightline (Flat)
- GT68_23F_0623.pdf
Drawing Preview

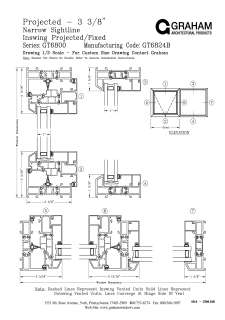

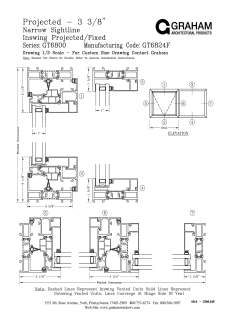

Inswing Projected/Fixed; Narrow Sightline (Beveled)
- GT68_24B_0623.pdf
Drawing Preview

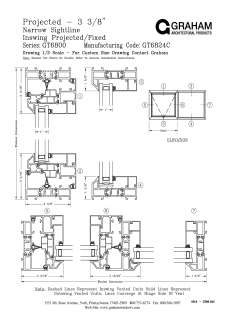

Inswing Projected/Fixed; Narrow Sightline (Concave)
- GT68_24C_0623.pdf
Drawing Preview

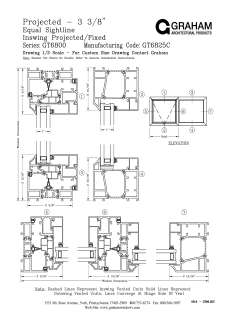

Fixed Over Inswing Projected; Equal Sightline (Beveled)
- GT68_33B_0623.pdf
Drawing Preview
Fixed Over Inswing Projected; Equal Sightline (Concave)
- GT68_33C_0623.pdf
Drawing Preview
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
