Print this page GT6800 Series Dual Action
Dual Action Window
Frame Depth (inches) 3.375
Description Highly energy efficient commercial window with a historic window profile. The GT6800 incorporates thermal strut technology for optimal thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
- Applications
- Commercial
- Education
AAMA Rating
CW-PG70
Test Size (inches)
48 x 72
Air Infiltration (cfm/ft2)
<0.10
Water Resistance (psf)
12
Design Pressure Positive (psf)
70
Uniform Load Structural (psf)
105
U-Value
0.20-0.37
CRF
66-72
Notes
Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size
Standard Features
- 3-3/8” Frame Depth
- Multi-point locking at all four sides of the window
- Center-gasket for pressure equalization
- Euro-grooves to accommodate multiple hardware options and accessory applications
- Superior joinery allows for larger units and more configurations
- Deep sloped exterior glazing leg
- Multiple glazing depths available
- Fixed/operable intermediate design offers minimal sightlines
- Design allows multiple units into one opening simplifying installation
- Larger thermal strut technology for excellent thermal performance
- Dual finish (two-tone color) option
- Concealed hinges
- 4-inch limited opening device
Optional Features
- True and exterior applied muntin grids
- Concave, flat, and flush-frame profile options
Related Products
GT6800 Series Fixed
Fixed WindowFrame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic
window profile. The newly designed GT6800 incorporates European thermal
strut technology for optimum thermal efficiency and low U-values. Achieving
AAMA AW rated in all configurations with minimum air infiltration, high water
resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
GT6800 Series Casement
Casement WindowFrame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.37
AAMA RatingAW-PG100
Test Size (inches)36 x 60
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
GT6800 Series Projected
Projected WindowFrame Depth (inches) 3.375
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GT6800 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.25-0.43
AAMA RatingAW-PG100
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Technical Data
Product Literature
Additional Resources
Specifications
GT6800 DAW CW-PG70 AAMA-08 Spec
CAD Drawings
Thermal Summary
GT6800 Tilt & Turn Thermal Simulation Summary
Product Hardware
Installation Guide
Projected/Casement Installation Instructions
Accessory Installation Guides
Installation Accessories

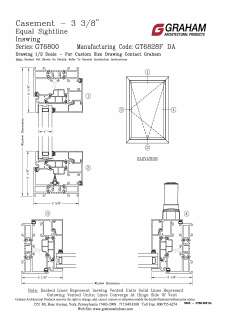

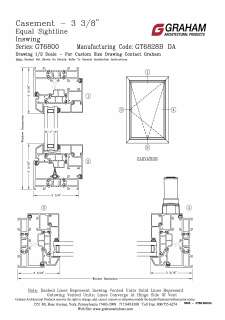

CAD Files
Description
AutoCAD
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
