Print this page GT2200 Series Double Hung
Hung Window
Frame Depth (inches) 4.0
Description Advanced design thermal strutted architecural grade double hung window that mulls to 4” frame fixed and operable products.
- Applications
- Commercial
- Education
- Energy Performance
- Historic Replication
- Residential High-Rise
AAMA Ratings
AW PG55
AW-PG90
Test Size (inches)
60 x 99
Air Infiltration (cfm/ft2)
0.26
Water Resistance (psf)
12
Design Pressure Positive (psf)
55/90
Uniform Load Structural (psf)
83/135
U-Value
0.36–0.41 (Historic Profile) 0.30–0.35 (Flat Profile)
CRF
64
STC
N/A
Notes
The air infiltration and water resistance performance values provided above were achieved in a controlled lab environment. Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products.
Standard Features
- Dual strut thermal breaks with 24 mm separation for improved thermal performance
- Block & tackle balances for superior operation
- Mulls to 4" frame fixed and operable products
- Sash removes from frame for maintenance & cleaning without special tools
- Sash bypass one another for ease of cleaning (using sweep-lock option)
- Full-length extruded lift handles
- Exterior-beveled (putty) glazing leg on Model GT2200H (Historic beveled sash) & up to 1” insulating glass
Optional Features
- Single hung option with fixed sash
- Applied-profile muntin grids with historic models
- 3" Extruded Auto Lock or Full Length Extruded Auto Lock (specify)
- High-performance balances up to 100 lbs. per sash with same sightlines at jambs as standard balance
- White bronze hardware
- Up to 1 1/4" glazing pocket on Model GT2200F (flat glazing leg sash) for triple glazing combinations
- Dual finish (two-tone color) option
Related Products
HIGT2200 Series Single Hung
Hung WindowFrame Depth (inches) 4.0
Description Hurricane resistant thermal strutted architectural grade single hung window that mulls to 4” frame fixed and operable products. Sash easily removes from frame for cleaning. Thermal strut for enhanced thermal performance.
Test Size (inches)50 x 90
Water Resistance (psf)12.11
Design Pressure Positive (psf)70
Design Pressure Negative (psf)90
Large MissleMeets
Small MissleMeets
GT2200 Series Single Hung
Hung WindowFrame Depth (inches) 4.0
Description Advanced design thermal strutted architectural grade single hung window that mulls to 4” frame fixed and operable products.
U-Value0.35 - 0.44
AAMA RatingAW-PG50
AW-PG70
AW-PG70
Test Size (inches)60 x 99
Air Infiltration (cfm/ft2)0.18
Water Resistance (psf)12.11
Design Pressure Positive (psf)50.13 / 70.18
Technical Data
Product Literature
Additional Resources
Specifications
Thermal Summary
GT2200 Thermal Simulation Summary (Historic)
GT2200 Thermal Simulation Summary (Flat)

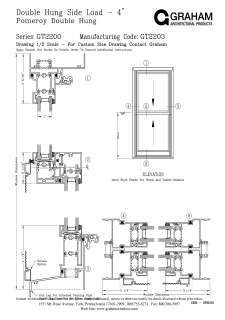

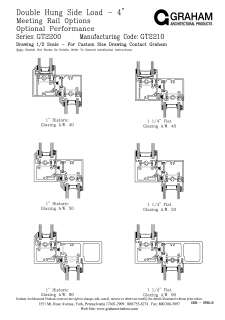

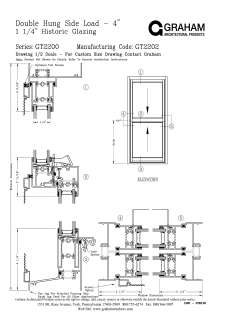

CAD Drawings
