Print this page GS6600 Series Fixed
Fixed Window
Frame Depth (inches) 2.5
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
- Applications
- Commercial
AAMA Rating
AW-PG100
Test Size (inches)
60 x 99
Air Infiltration (cfm/ft2)
<0.10
Water Resistance (psf)
12
Design Pressure Positive (psf)
100
Uniform Load Structural (psf)
150
U-Value
0.28-0.40
CRF
57-62
Notes
Values above are estimated from testing of a similar series | Performance of our products in the field will vary depending on product configurations, installation methods, and ambient conditions. AAMA 502 “Voluntary Specification for Field Testing of Newly Installed Fenestration Products” should be adhered to for testing installed products. | U-values will vary depending upon glazing selected and sample size
Standard Features
- 2-½” Frame Depth
- Special euro-grooves to accommodate multiple hardware options and accessory applications
- Superior joinery allows for larger units and more configurations
- Deep sloped exterior glazing leg
- Multiple glazing depths available
- Fixed/Operable intermediate design offers minimal sightlines
- Design allows multiple units into one opening simplifying installation
- Larger thermal strut technology for excellent thermal performance
- Dual finish (two-tone color) option
- Concealed hinges
- 4-inch limited opening device
Optional Features
- True and exterior applied muntin grids
- Concave frame and muntins

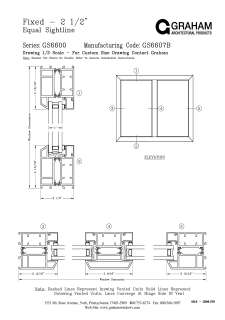

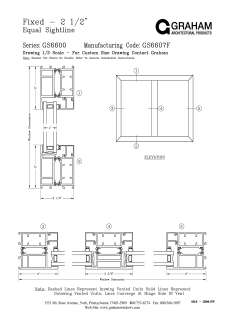

- Equal sightline frame
Related Products
GS6600 Series Projected
Projected WindowFrame Depth (inches) 2.5
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.44-0.52
AAMA RatingAW-PG100
Test Size (inches)60 X 36
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
GS6600 Series Casement
Casement WindowFrame Depth (inches) 2.5
Description New and improved highly energy efficient commercial window with a historic window profile. The newly designed GS6600 incorporates European thermal strut technology for optimum thermal efficiency and low U-values. Achieving AAMA AW rated in all configurations with minimum air infiltration, high water resistance and impressive design pressures.
U-Value0.44-0.52
AAMA RatingAW-PG100
Test Size (inches)36 x 60
Air Infiltration (cfm/ft2)<0.10
Water Resistance (psf)12
Design Pressure Positive (psf)100
Technical Data
Product Literature
Additional Resources
Specifications
GS6600B/C Fixed AW-PG100 AAMA-08 Spec
GS6600F Fixed AW-PG100 AAMA-08 Spec

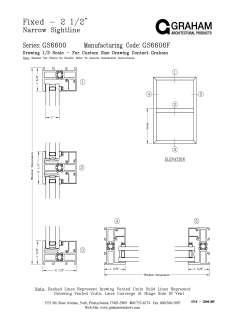

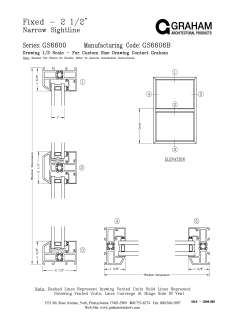

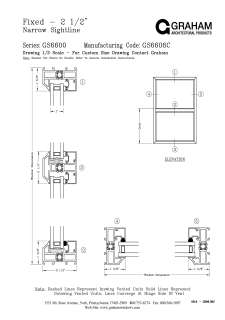

CAD Drawings
GS6600 - All CAD files (zipped)
Thermal Summary
GS6600 Fixed Thermal Simulation Summary
Product Performance Guide
Installation Guide
Fixed Installation Instructions
Accessory Installation Guides
Installation Accessories
CAD Files
Description
AutoCAD
 TESTING: Our products are tested to the standards of and certified by the American Architectural Manufacturer's Association and the National Fenestration Rating Council. |
